Allora USA – KSN-3018-GM – Gunmetal 30″ X 18″ X 9″ Undermount Bowl Large Single Bowl

Gunmetal Steel STANDARD SERIES | Model: KSN-3018-GM

INCLUDES: SINK ONLY- FAUCET, CABINET, COUNTER, VANITY, OTHER ACCESSORIES NOT INCLUDED.

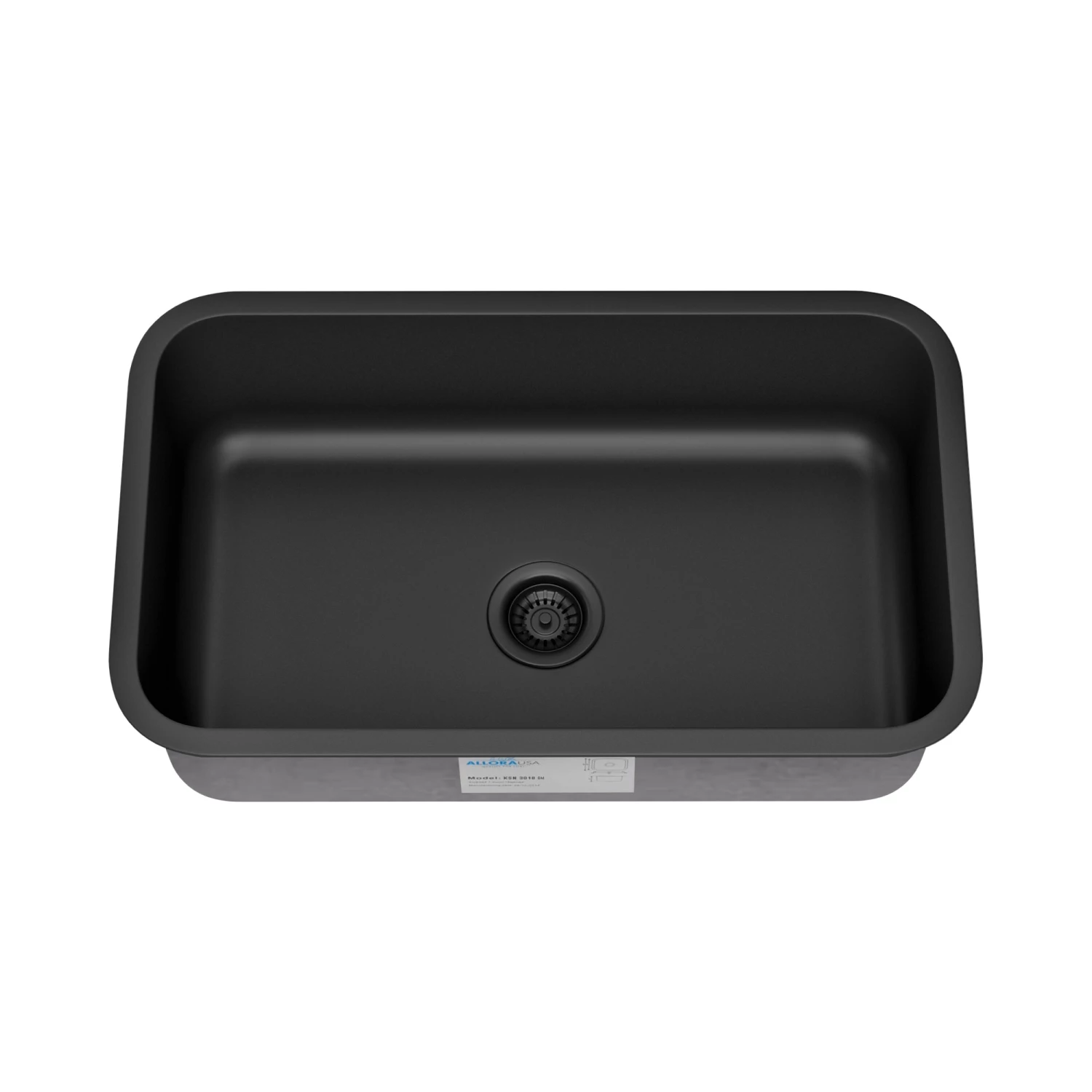

The KSN-3018-GM is an undermount, single bowl kitchen that fits perfectly within a 33″ cabinet. Manufactured from 18-gauge 304 stainless steel, the KSN-3018-GM features a gunmetal satin finish protecting the beauty of the sink. The dimensions for the KSN-3018-GM are 30″ x 18″ x 9″ with a centered drain that measures 3 1/2″. Every Allora USA sink features a coating of insulating paint and sound dampening pad to reduce noise. Pictures not to scale. Accessories not included. Actual sink colors may vary from on-screen and printer representations.

Features:

• No Faucet Holes
• Standard Radius Corners
• High-Quality Construction
• Under Counter Installation
• Cutout Size: Template provided
• Padded with undercoated insulation over a rubber pad to reduce noise while the sink is in use
• Certified and Listed by UPC, cUPC
• Limited Lifetime Warranty
• Scratch-resistant premium satin finish
• Includes Installation Hardware
• Grid (sold separately): GRHM-3018
• Drain Cover not included.
• Drain Strainer not included
• Picture not to scale
• Actual sink colors may vary from on-screen and printer representations

• SINK ONLY– FAUCET, CABINET, COUNTER, VANITY, OTHER ACCESSORIES NOT INCLUDED.





Technical Drawing

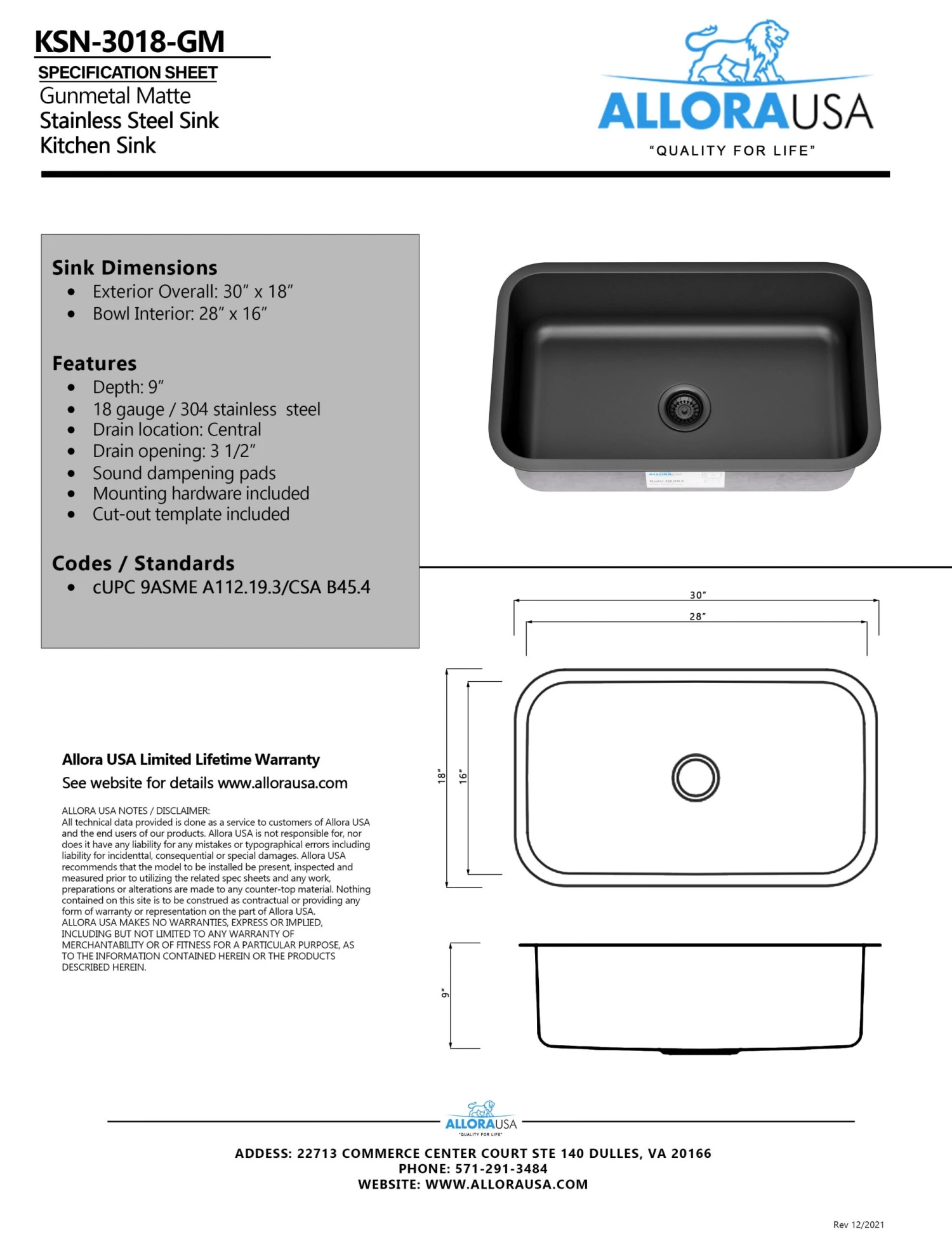

Spec Sheet

Installation Guide

DXF Cut Out

Care & Maintenance

Manufacturer’s Warranty



Specifications:

• Centered drain hole
• 18-gauge stainless steel gunmetal
• 18/10 Chrome-Nickel Content
• 304 Stainless Steel
• Minimum Cabinet Size: 33″

Includes:

• SINK ONLY– FAUCET, CABINET, COUNTER, VANITY, OTHER ACCESSORIES NOT INCLUDED

• Digital and paper template for cutout

• Installation clips

• Q: What size base cabinet is needed to fit this sink? A: This sink fits a 33″ cabinet
• Q: What does 18 gauge stainless steel mean? A: The gauge measures the thickness of the stainless steel. 18 gauge is 1.2 mm thick
• Q: How many strainers do I need to purchase? A: If you have a garbage disposal on a single bowl sink you will not need a strainer.
• Q: Can a garbage disposal be installed with this sink? A: Yes, any standard garbage disposal model can be installed on this sink.
• Q: What products are included?  A: Products included: sink only- faucet, cabinet, counter vanity, and other accessories not included.
