RUVATI Undermount Stainless Steel 28 In. 16-Gauge Single Bowl Kitchen Sink Sinks

 Stainless Steel Sink Drop-in / Undermount SERIES RUVATI Gravena

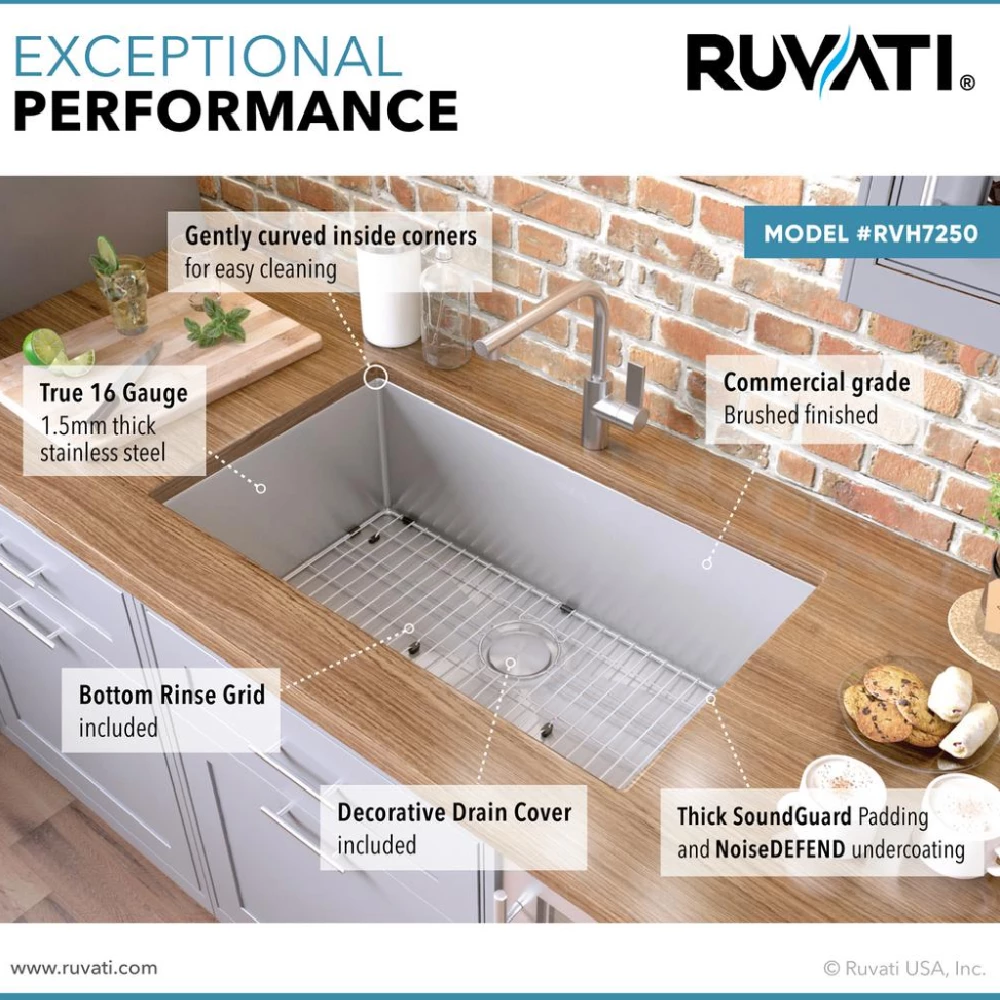

Gravena offers a modern, linear style with square / rectangular bowls. Sinks from the Gravena series feature Ruvati’s unique edgeX 10 mm Tight Radius – the inside corners of the sink have just the right amount of curve making the sink easy to clean, while at the same time retaining a resolutely modern look. Other comparable sinks in the market use 20 mm radius corners which look a lot more rounded and thus less refined. The rear drain placement ensures dishes don’t settle on the drain and prevent water flow while the drain grooves in the basin channel water towards the drain, keeping your sink clean and dry.

Features:

• No Faucet Holes
• Undermount installation
• Tight / R15 radius
• Cutout Size: Template provided
• Picture not to scale

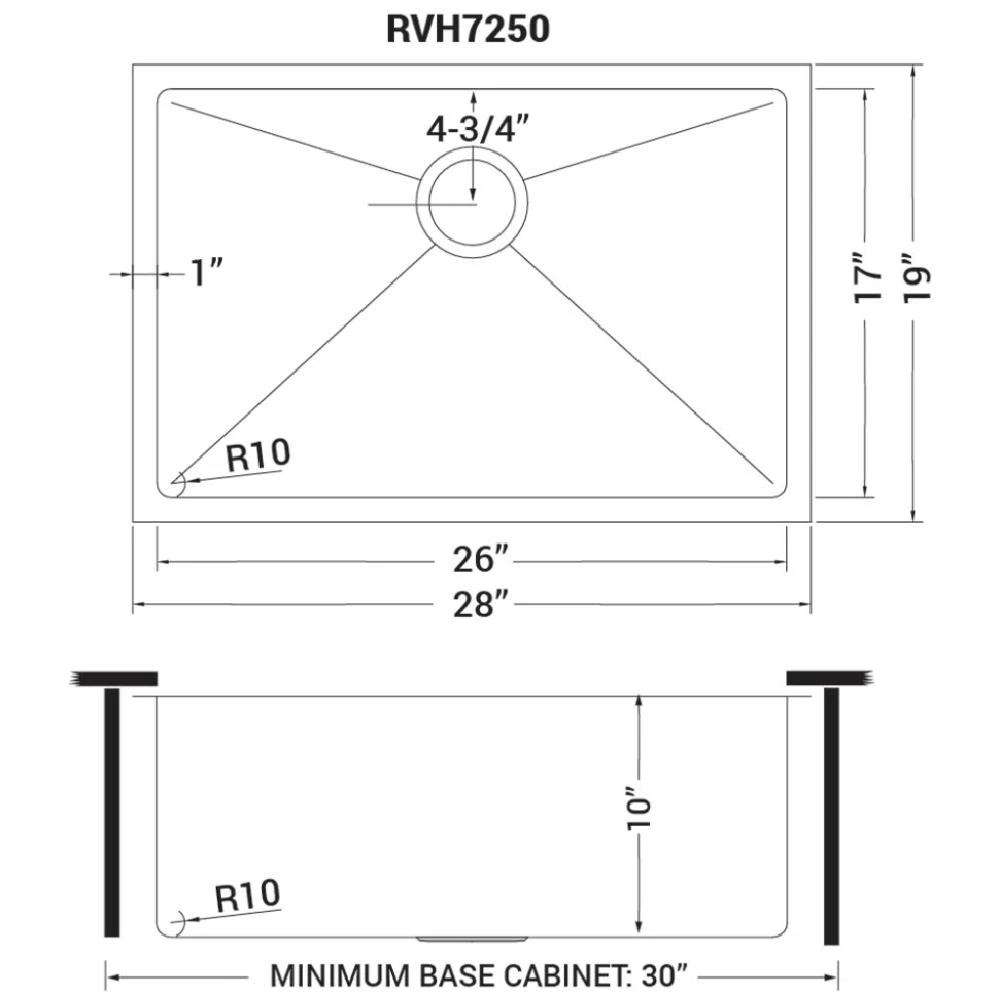

Technical Drawing

Spec Sheet

Installation Guide

Manufacturer’s Warranty

Specifications:

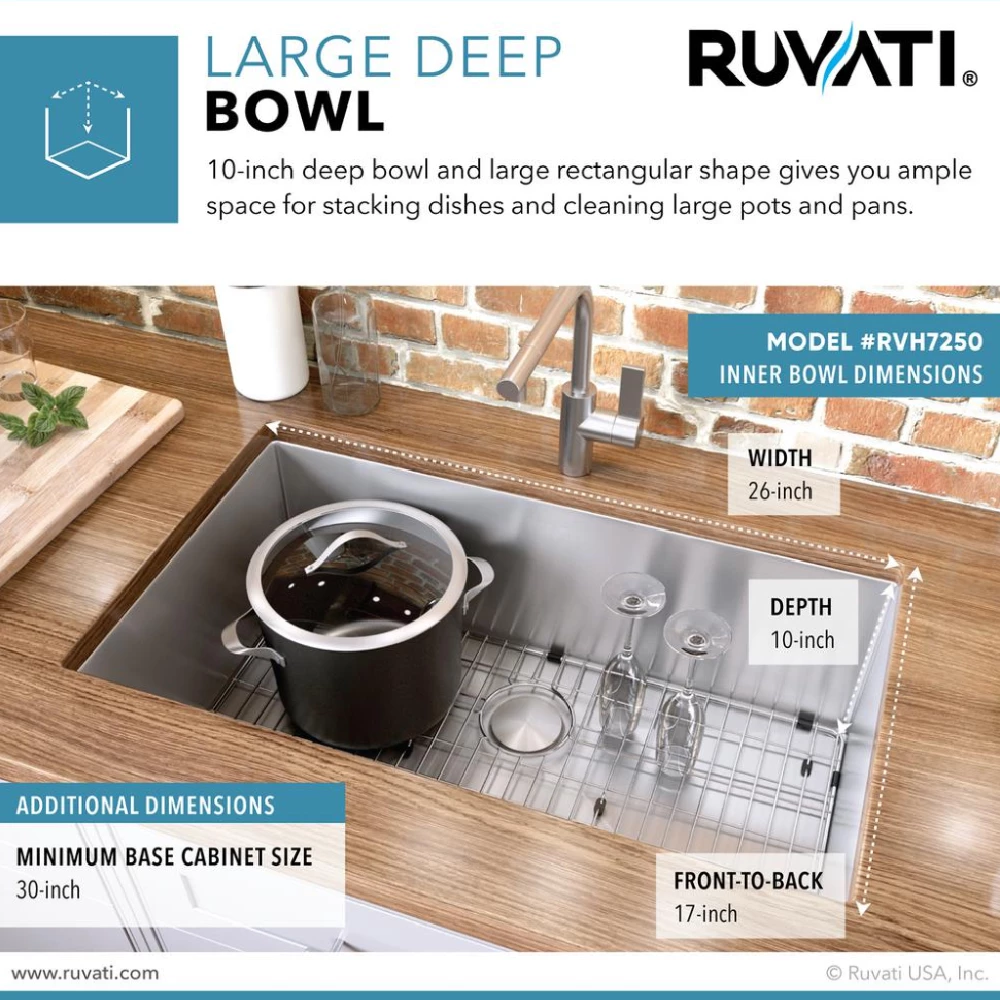

• Exterior dimensions: 28 in. (wide) x 19 in. (front-to-back)
• Interior dimensions: 26 in. (wide) x 17 in. (front-to-back)
• Bowl depth: 10 in.
• Minimum base cabinet size: 30 in.

• Standard 3.5 in. drain opening will fit any garbage disposal unit

Includes:

• Includes stainless steel bottom rinse grids that protect the sink from scratches and acts as a drying rack for pots and pans
• Includes basket strainer drain that traps food waste and can be easily emptied into the trash

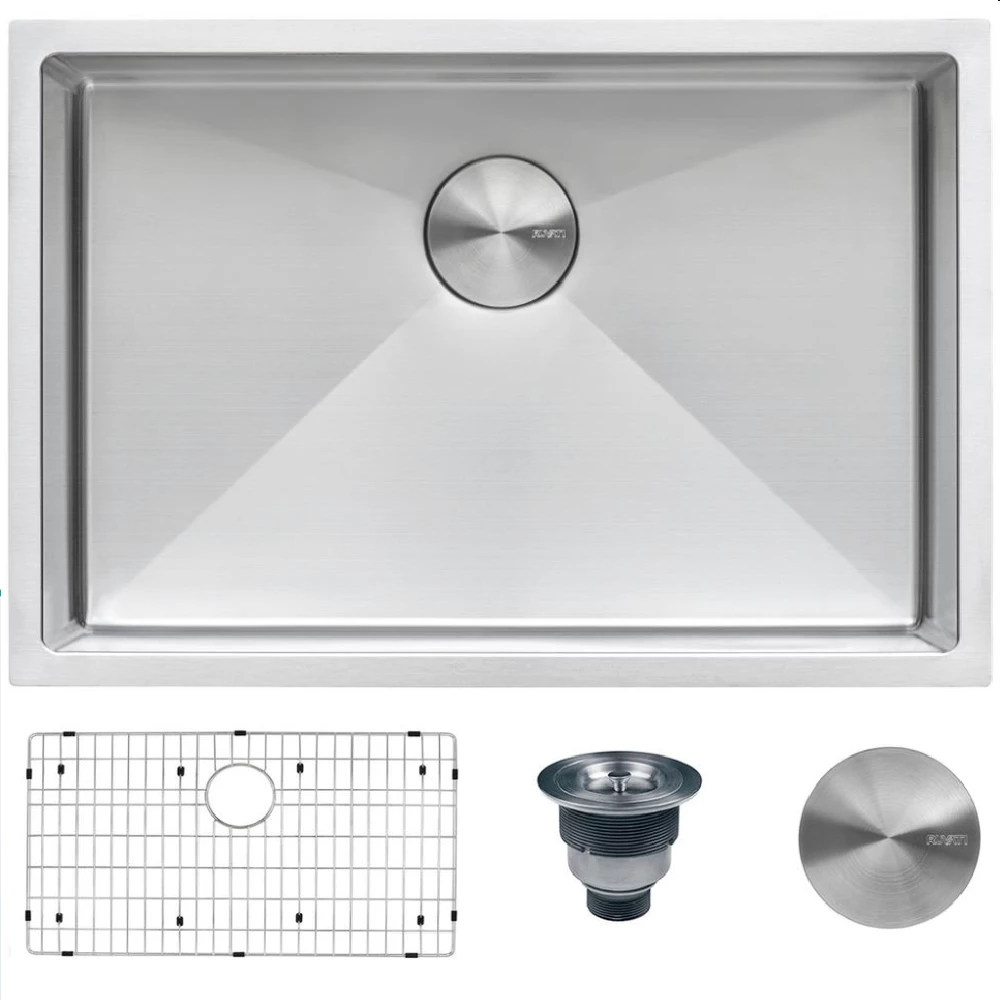

• Included in box: sink, cut-out template, mounting brackets, rinse grid, basket strainer

• Q: What does the gauge of stainless steel mean? A: The gauge measures the thickness of the stainless steel. 18 gauge is 1.2 mm thick, while 16 gauge is thicker at 1.5 mm thick.
• Q: How many strainers do I need to purchase? A: If you have a garbage disposal on a single bowl sink you will not need a strainer. If you have a garbage disposal on one side of a double bowl sink you will need to purchase one strainer for the other bowl.
• Q: Can a garbage disposal be installed with this sink? A: Yes, any standard garbage disposal model can be installed on this sink.
